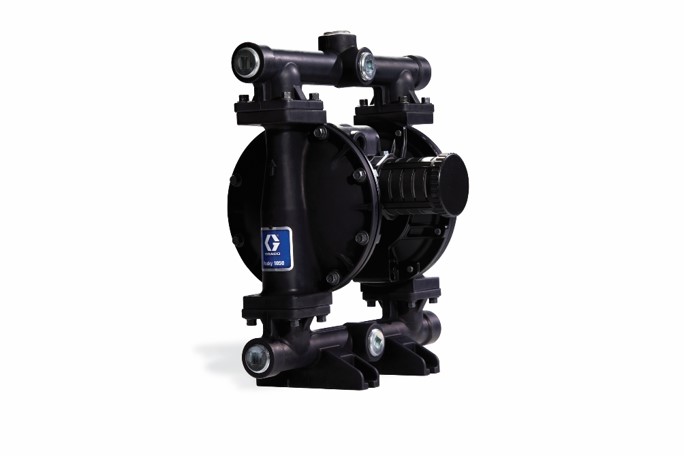

Husky 1050 (Pnewmatic Diapraghm Pump)
Spesifikasi
| Maximum fluid working pressure |
8.6 bar, 0.86 MPa |
| Air pressure operating range |
1.4-8.6 bar, 0.14-0.86 MPa |
| Fluid displacement per cycle |
0.64 l |
| Air consumption |
0.7 m³/min at 4.8 bar, 0.48 MPa, 76 lpm |
| Maximum air consumption |
1.9 m³/min |
| Maximum free-flow delivery |
189 lpm |
| Maximum pump speed |
280 cpm |
| Maximum size pumpable solids |
3.2 mm |
| Recommended cycle rate for continuous use |
93 - 140 cpm |
| Recommended cycle rate for circulation systems |
20 cpm |
| Sound Power at 70 psi (4.8 bar, 0.48 MPa) and 50 cpm |
78 dBa |
| Sound power at 100 psi (7.0 bar, 0.7 MPa) and full flow |
90 dBa |
| Sound Pressure at 70 psi (4.8 bar, 0.48 MPa) and 50 cpm |
84 dBa |
| Sound Pressure at 100 psi (7.0 bar, 0.7 MPa) and full flow |
96 dBa |
| Air inlet size |
1/2 npt(f) |
| Aluminum (1050A), Hastelloy (1050H) or Stainless Steel (1050S) |
1 in npt(f) or 1 in bspt |
| Conductive Poly (1050C), Polypropylene (1050P), or PVDF (1050F) |
1 in raised face ANSI/DIN flange |
